Quick Details

  • Size: 150# 250# 300# 400# 500# 600# 900# 1500# 2500#
  • Material: Titanium GR1 GR2 GR5 GR7 GR9 GR12
  • Standard: BS
  • Place of Origin: China (Mainland)
  • Model Number: hubbed Weld Flange-LWN blind welded
  • Brand Name: XLT
  • Standard or Nonstandard: Standard
  • certification: ISO900:20001,SGS
  • surface: polished
  • Density: 4.51

Packaging & Delivery

Packaging Details wooden case
Delivery Time 7-20day

welding neck flange  Flange-LWN ; Weld Neck   hubbed  titanium flange     hubbed  titanium flange  Weld titanium flange



Product Description

 Material

Titanium GR1  GR2  GR3  GR4  GR5  GR5  GR9  GR12

                                                                     Product   features



There are holes in titanium flanges and bolts make two titanium flanges connected to each other. Titanium flanges can be made by casting, threaded connection or welding.flange joint includes a pair of titanium flanges, a gasket, a number of bolts and nuts. The gasket is put between the contact surfaces of two titaniun flange. After the bolts are tightened,the specific pressure on gasket are up to a certain value, then the gasket are out of shape and fill in contacting surface of two titanium flanges in order to seal flange joint closely.



Material Grade

Gr1 Gr2 Gr3 Gr4 GR5 Gr7 Gr9 Gr11

Certification

ISO9001:2008, TUV, material test certificate acc EN10204.3.11

Standard

ANSI B16.5, ASTM B16.5, ASME B16.47, JIS B2220, DIN2627-2628,  AWWA ASTM A182, AND ASME SA182

size

1/2"~ 60"NB NPS 1/2 - NPS 24 (DN 10 - 2000)

 Pressure Class

PN0.25~32Mpa
(DIN) PN6 PN10 PN16 PN25 though PN250
150# 250# 300# 400# 500# 600# 900# 1500# 2500#

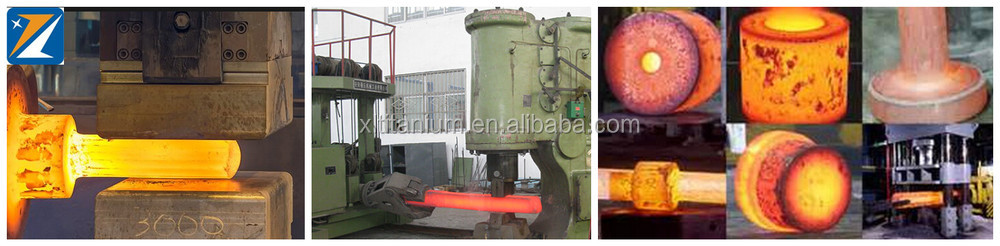

Technique

Forged and CNC Machined

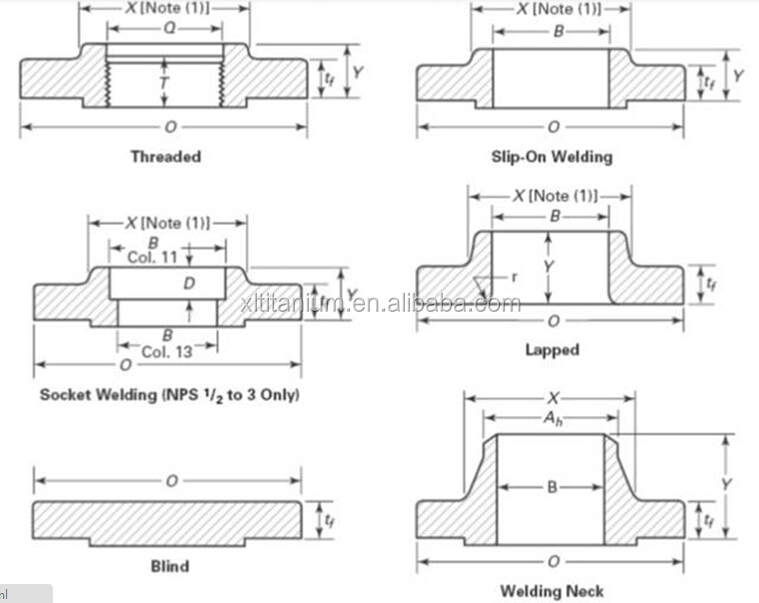

type

Weldnecks Slip-Ons Threaded Blind Socket weld and Lap-Joint

Flange surface

FF RF TG RJ MFM











Inspection scope
1.mechanical properties
2.chemical composition adalysis
3.Ultrasonic test and dye Penetration test













Packaging & Shipping











Contacts:li   jiang

skype:lijiang20245
